Anycut A3/A4 Adsorption Servo Motor Label Cutting Machine Effective Coating Material Graphic Cutter

Brand Name : Anycut

Model Number : ZKSVD370PRO

Certification : CE/FCC/RoHS

Place of Origin : shenzhen

MOQ : 1 piece

Price : ￥$2398~2826/piece

Payment Terms : T/T,Western Union

Supply Ability : 1~4 pieces/3days;5~30pieces/15 days;31~100pieces/20days

Delivery Time : 20~30 work days

Packaging Details : Host machine:L960mm*W960mm*H780mm;Cabinet:L910mm*W890mm*H860mm

max cutting width : 340mm

Auto contour cut : Camera(automatically contour cutting)

Max cutting speed : 1600mm/s

Max force : 2000g

Control panel : 5.0 inch touch screen

Suitable cutting material : Self-adhesive sticker/coated paper/PVC

Connect or interface : USB cable/Udisk/web cable/WIFI

Support software : CDR/AI/PS/Contour software/Signmaster(optional）

Max material thickness : 450gsm

Positioning mode : Qr code/Dot/Right angle

Contact Now

Anycut A3/A4 Adsorption Servo Motor Label Cutting Machine Effective Coating Material Graphic Cutter

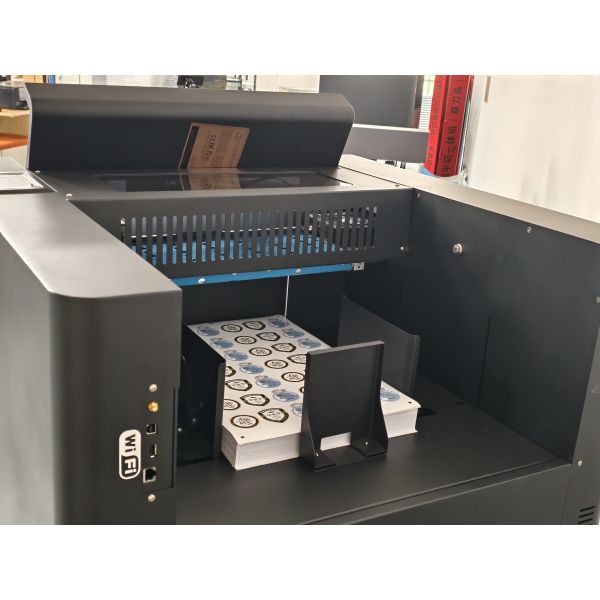

The ZKSVD370PRO is a compact, high-performance cutting plotter equipped with a suction-type fully automatic paper feeding system and effective static elimination, ensuring smooth, jam-free handling of materials during high-volume production.


Powered by a high-speed servo motor and a dual-knife head carriage, it achieves a maximum cutting speed of 1600mm/s and delivers 2000g of cutting force. This allows it to complete full-cut, half-cut, creasing, and cutting operations in a single pass, making it ideal for processing self-adhesive stickers, coated paper, PVC, business cards, tags, and carton materials.


Featuring camera automatic contour cutting and a ±0.01mm cutting accuracy, it ensures precise results for intricate designs. The 5.0-inch LCD touch screen provides intuitive operation, while flexible connectivity options (USB, U-disk, network cable, and WiFi) adapt to any workspace.



MODEL ZKSVD370PRO
Max. media width 370mm
Max. cutting width 340mm
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0 inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 1
Blade type Rowland blade
Packing size Host:L 960mm*W 960mm*H 780mm;Cabinet:L910mm*W890mm*H860mm
Machine size L 790mm*W 790mm*H 1200mm
Gross/Net weight 206kgs/142kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 450gsm
Max. cutting speed 1600mm/s
Max.force 2000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
Memory 1G
Support system All versions of windows
